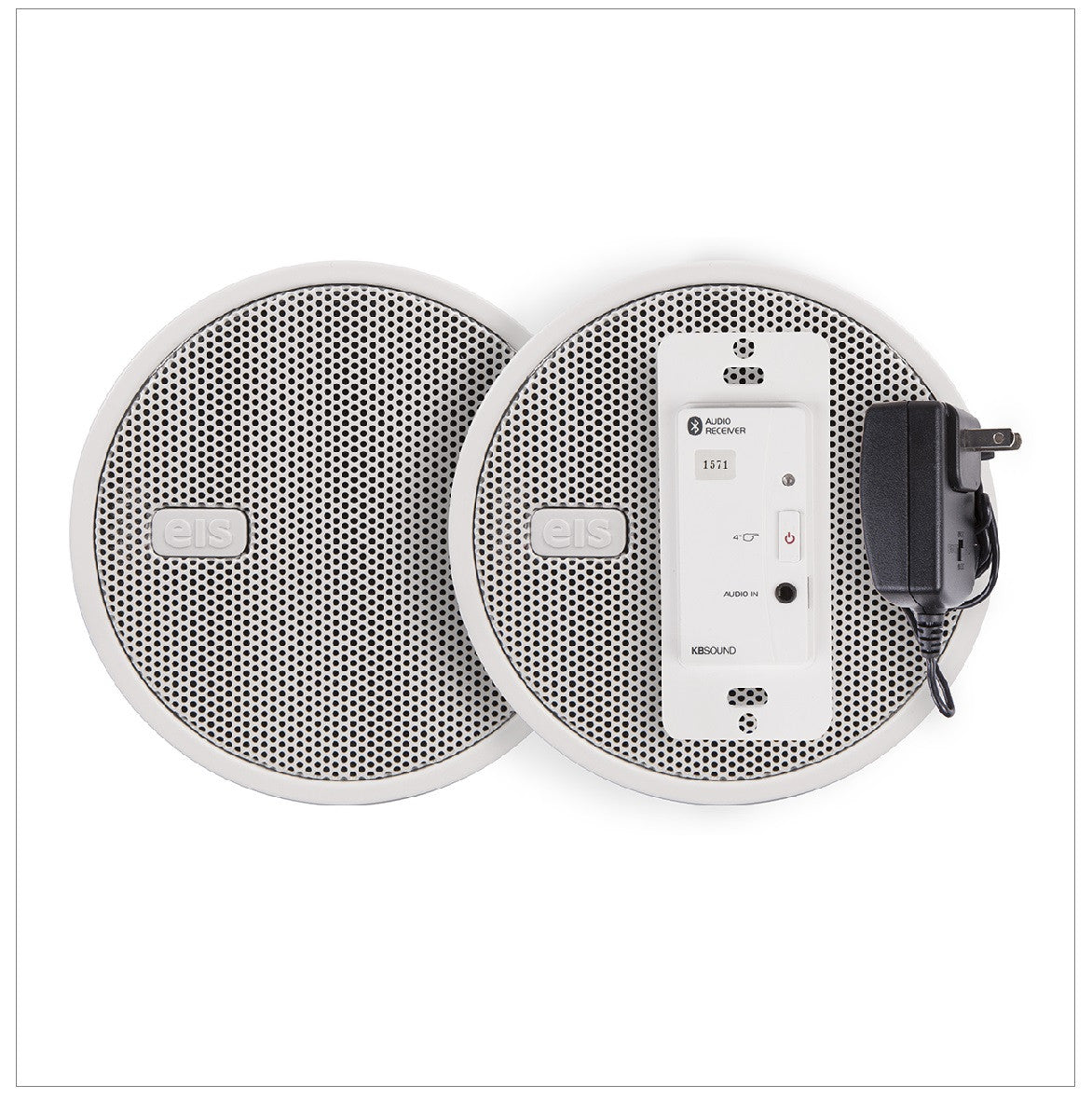

In Wall Bluetooth Audio Receiver 2.5" Kit

In-Wall Bluetooth® Audio Receiver with two 2.5" speakers that can be paired with any device with Bluetooth® capabilities (A2DP / AVRCP).

US version fits most Decora® wallplates.

European versions available in square 1.8in x 1.8in. Comes with mounting hardware.

Signal reach of approximately 33 ft.

Each Bluetooth® receiver has its own identification number, designed to ensure security and avoid interferences from other users nearby. Perfect for your home, ideal solution for hotel rooms, hospitals, schools and any public place.

Each module is identified as KINGBT-XXXX where XXXX is a serial number which permits the user to identify different modules that can co-exist in the same installation, ie: hotel rooms.

External audio input: the module is also provided with a socket to connect a 3.5mm jack for an external audio input. When the user inserts the jack the audio output switches to the signal from the jack and has priority over the Bluetooth® signal.

NEW FEATURE

Audio line output: The module provides a stereo line output to connect with our Audio Control Unit (Ref. 09204) or our Auxiliary Amplifier (Ref. 13204).

This feature will allow the user to extend the audio signal to a secondary area (Audio Control) or increase the audio output level (Aux Amplifier).

In Wall Speaker Kit includes:

• In-Wall Bluetooth® Audio Receiver
• Power supply
• Two 2.5" 8Ω In-Ceiling Speakers

Our Bluetooth receivers are powered from a plug in power supply 15Vdc.

Diagram

Installation & User manual
